Fully Automatic Servo Driver Two lines T-Shirt Bag Making Machine With Gusseting Unit
BACK
INQUIRY

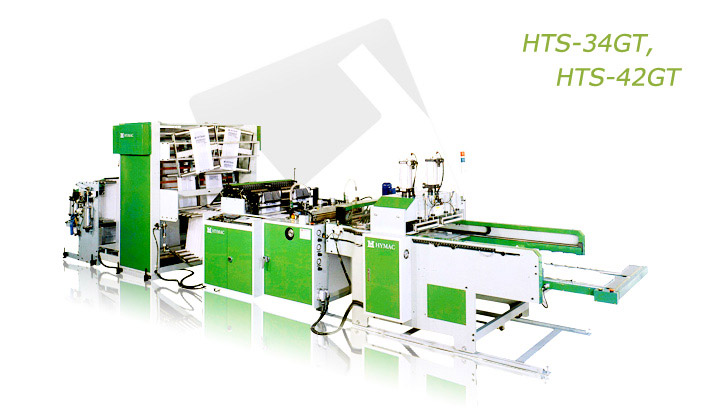

Fully automatic servo drive T-Shirt bag making machine with gusseting unit (HTS-34GT, HTS-42GT)
MAIN FEATURES
MAIN FEATURES
FEATURE 1

FEATURE 1








MAIN FEATURES
SPECIFICATION
Specification:
MODEL
HTS-34GT
HTS-42GT
Min. bag length
350mm
350mm
Max. bag length
700mm
700mm
Min. bag width
180mm
180mm
Max. bag width
350mm
450mm
Max. film width
580mm
650mm
Sealing thickness
0.008~0.035mm
0.008~0.035mm
Production Speed
300 cycle/min./line
300 cycle/min./line
Capacity
140 meters/min
140 meters/min
Electrical requirement
16KW
16KW
Pneumatic requirement
7kgs/cm2,500L/min
9kgs/cm2,750L/min
Machine dimension (LxWxH)
6500X1600X2070mm
8200X2100X2070mm
