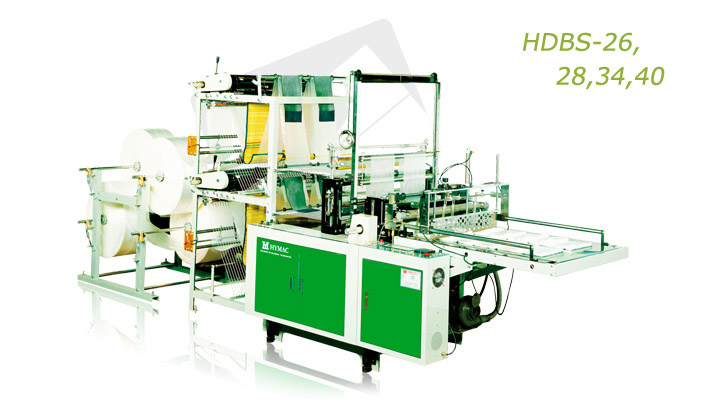

High efficient double deck sealing system bags making machine (HDBS-26, 28, 34, 40)
MAIN FEATURES
MAIN FEATURES
FEATURE 1

FEATURE 1









MAIN FEATURES
SPECIFICATION
Specification:
MODEL
HDBS-26
HDBS-28
HDBS-34
HDBS-40
Max. bag width
325mmX4, 650mmX2
350mmX4, 700mmX2
420mmX4, 850mmX2
480mmX4, 1000mmX2
Max. bag length
1000mm
1200mm
1200mm
1200mm
Film thickness
0.008~0.15mm
0.008~1.5mm
0.008~0.15mm
0.008~0.15mm
Length tolerance
±1mm
±1mm
±1mm
±1mm
Production speed
40~120 cycle/min./line
40~120 cycle/min./line
40~100 cycle/min./line
40~100 cycle/min./line
Driving motor(AC)
1HP
2HP
2HP
2HP
Heater capacity
2400w
4400w
4400w
4400w
Electrical requirement
5800w
5300w
6100w
6100w
Machine dimension
4200X1300X1720mm
4200X1420X1720mm
4200X1550X1720mm
4700X1675X1720mm
Packing dimension
2810X1510X2120mm
2810X1540X2120mm
2810X1670X2120mm
2810X1800X2120mm
Gross Weight
850kgs
950kgs
1100kgs
1300kgs
Air volume pressure
7kg/cm2,30 L/min
7kg/cm2,30 L/min
7kg/cm2,30 L/min
7kg/cm2,30 L/min
