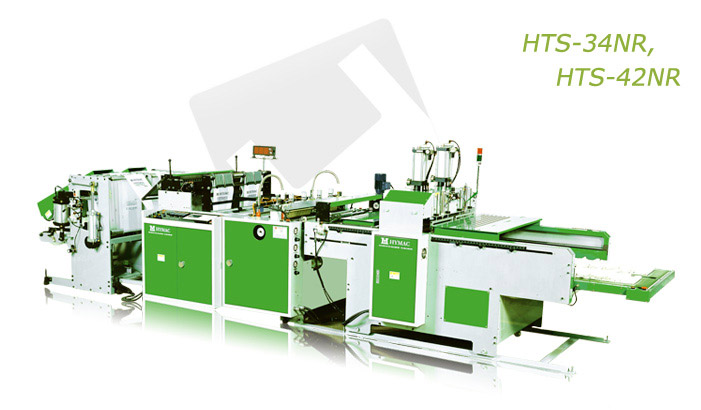

Fully Automatic Servo Driver Two lines Printed T-Shirt Bag Making Machine
BACK
VIDEO
INQUIRY





T-shirt bag
MAIN FEATURES
MAIN FEATURES
FEATURE 1

FEATURE 1

 FEATURE 2

FEATURE 2

 FEATURE 3

FEATURE 3

 FEATURE 4

FEATURE 4

 FEATURE 5

FEATURE 5
MAIN FEATURES
SPECIFICATION
Specification:
MODEL
HTS-34NR
HTS-42NR
Min. bag length
350mm
350mm
Max. bag length
650mm
650mm
Min. bag width
180mm
180mm
Max. bag width
350mm
450mm
Sealing thickness
0.008~0.035mm
0.008~0.035mm
Production Speed
300 cycle/min./line
300 cycle/min./line
Capacity
140 meters/min
140 meters/min
Electrical requirement
14.50KW
14.50KW
Pneumatic requirement
7kgs/cm2,500L/min
7kgs/cm2,500L/min
Machine dimension (LxWxH)
6500X1600X1700mm
6500X1800X1700mm
